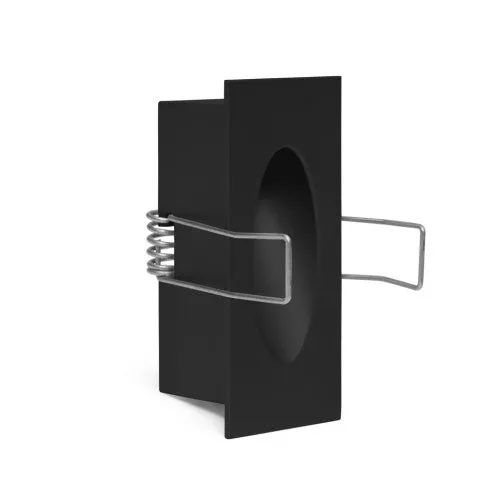

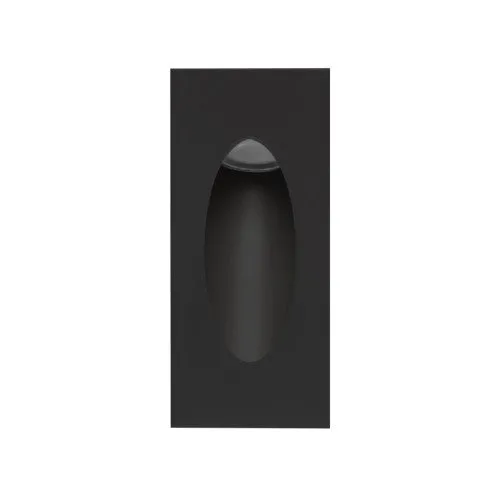

LuxR Lighting V1 Recessed Steplight with Coil Springs

The LuxR Modux V1 Recessed Downlight is a small low-voltage dimmable indoor/outdoor light. Designed for recessing low down into walls to project an asymmetrical wash across paths and steps. It combines an ultra discreet profile without glare and an IP65 ingress protection rating..

Precision machined from aluminium and is available in E-Coat matte powdercoat colours (see spec sheet for additional colour options).

The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED.

Specifications

• Input Current: 350mA max
• Forward Voltage: 3Vf
• Power: 1.5 Watts
• Efficacy: 70 Lm/W - Delivered from luminaire with unobstructed beam
• Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
• CRI [3000°K]: Ra 90
• Beam [FWHM]: Asymmetric wash
• Standards: IP67, LM79, CE.
• Light Engine: Replaceable dimmable module equipped with Cree XPG-3 LED
• Driver: Remote constant current driver required
