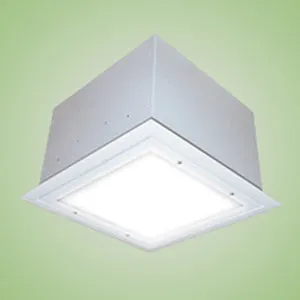

Techlight RCLS Recessed Square HID Canopy

Application

The RCLS Recessed Canopy light was designed for low to mid-level lighting under storefront awnings, indoor retail applications, or any recessed mount lighting application. The finished product is an unobtrusive light fixture where you see the results, and not the fixture itself.

Construction

The fixture is constructed of heavy galvanized steel. A clear prismatic glass lens is gasketed in place to make the fixture weather resistant.

Finish

A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. Standard colors available: Black, Bronze, US Green, White. Custom colors available upon request.

Optical System

High reflectance white paint directs the light down through a clear prismatic tempered glass lens for a uniform light pattern.

Electrical System

Provided with a 4KV pulse rated socket or GX24q socket assembly. Fixtures are available with a 32W CFL, 50W-250W Metal Halide, and 50W-250W HPS lamp and ballast system. Each 60HZ CWA multi-tap1, 480V, or Fluorescent ballast is pre-wired and installed for convenience.

Mounting

A mounting collar is provided for rough-in installation. It comes with two mounting brackets that are slotted for adjustability. The housing slips into the frame and is held by four spring loaded tabs for secure installation.
